Perfect for Smart Lighting and Dimming Systems
This lighting control cable is suitable for DALI, KNX, and 0–10V systems. It transmits dimming and switching signals and can be used in both indoor and outdoor applications.
The rated voltage is 300/300V or 300/500V. The conductor is available in solid or Class 5 flexible copper. Tinned copper can also be selected for improved oxidation resistance. The insulation and jacket are made of PVC or LSZH materials, offering resistance to fire, smoke, and UV exposure.
For PVC versions, the operating temperature range is -15°C to +70°C. For LSZH versions, it is -20°C to +90°C. This product features a low-capacitance design, ensuring stable dimming signal transmission.
Clean Signal for Reliable Lighting Control
The insulation resistance is high, ensuring electrical safety. This lighting control cable is flexible and easy to install in ceilings and walls. It resists moisture and aging.
Outdoor versions are UV- and rain-resistant, while LSZH versions provide low smoke emissions for improved public safety. This cable complies with lighting control electrical standards.
It is suitable for indoor decorative lighting, outdoor landscape lighting, commercial buildings, and smart building systems. It meets the requirements of high-precision signal transmission for smart dimming, scene control, and centralized management.
The cable has good weather resistance and flame-retardant properties. Indoor versions are safe and environmentally friendly. Outdoor versions resist UV exposure and rain, and do not easily age or fade.
In case of fire, the LSZH version produces low smoke and no toxic gases, improving safety in public spaces.
Easy to Install and Use
Installation of this product is simple, and maintenance is convenient. Signal transmission is stable, with no noticeable delay or interference.
This lighting control cable is widely used in hotels, shopping malls, office buildings, municipal landscape projects, sports venues, and smart homes. It can be installed through ceilings, walls, and cable trays.
Its flexibility allows for neat and concealed installation. Choose this product for your next smart lighting project to ensure stable dimming and switching performance.
Specifications Table
|
Parameter |
Value |
|
Capacitance (unshielded) |
≤80 pF/m |
|
Supported Protocols |
DALI, KNX, 0–10V |
|
LSZH Option |
Yes (IEC 60754) |
|
UV Resistance (outdoor) |
720 hours |
|
Conductor Options |
Solid, flexible, tinned |

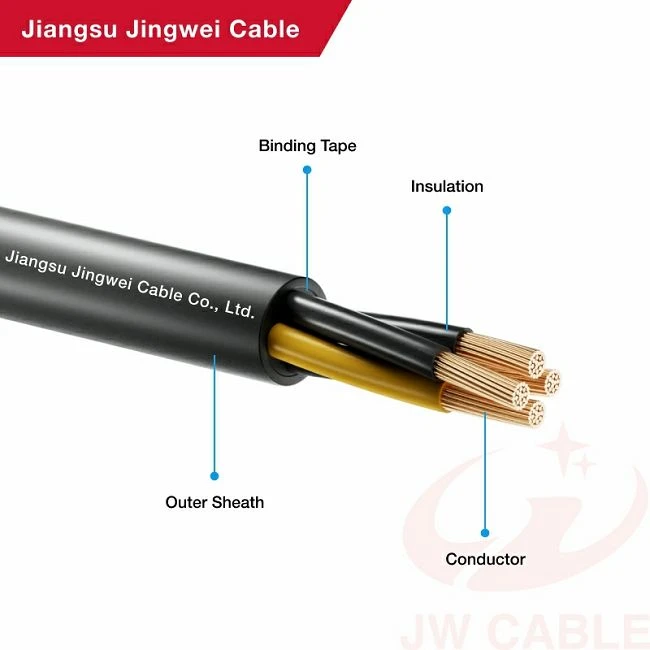

1.Conductor
√ Solid or stranded copper conductor, Class 2 / Class 5 flexible
√ Tinned copper conductor optional for anti-oxidation & long service life
01
2.Rated Voltage
√ Low voltage control: 300/300V / 300/500V
√ Suitable for smart lighting & dimming control system
02
3.Insulation & Sheath
√ PVC / LSZH (Low Smoke Zero Halogen) insulation & outer sheath
√ Flame retardant, non-toxic, low smoke during burning
√ Anti-UV, weather-resistant for indoor & outdoor lighting wiring
03
4.Electrical Performance
√ Stable signal transmission for dimming, switching & intelligent lighting control
√ Low capacitance & low interference; can work with DALI / KNX / 0-10V lighting systems
√ High insulation resistance, secure & safe circuit control
04
5.Mechanical & Environmental
√ Good flexibility, easy routing in ceiling, wall and trunking
√ Abrasion resistant, moisture proof & ageing resistant
√ Operating temperature:PVC: -15℃ ~ +70℃LSZH: -20℃ ~ +90℃
05
