Precision Cable for Sensitive Instruments

Our factory produces the instrumentation cable for precision instruments and sensor signal transmission in solar systems. This product is made for irradiance sensors, temperature sensors, and weather station connections. The product uses tinned copper conductors with individual insulation. The cores are twisted in pairs. Each pair has an aluminum foil shield. The whole bundle has a tinned copper braid overall shield. This double shielding gives the product excellent anti-interference and signal accuracy. It works from -40°C to +90°C. Our product keeps weak analog signals clean and accurate.

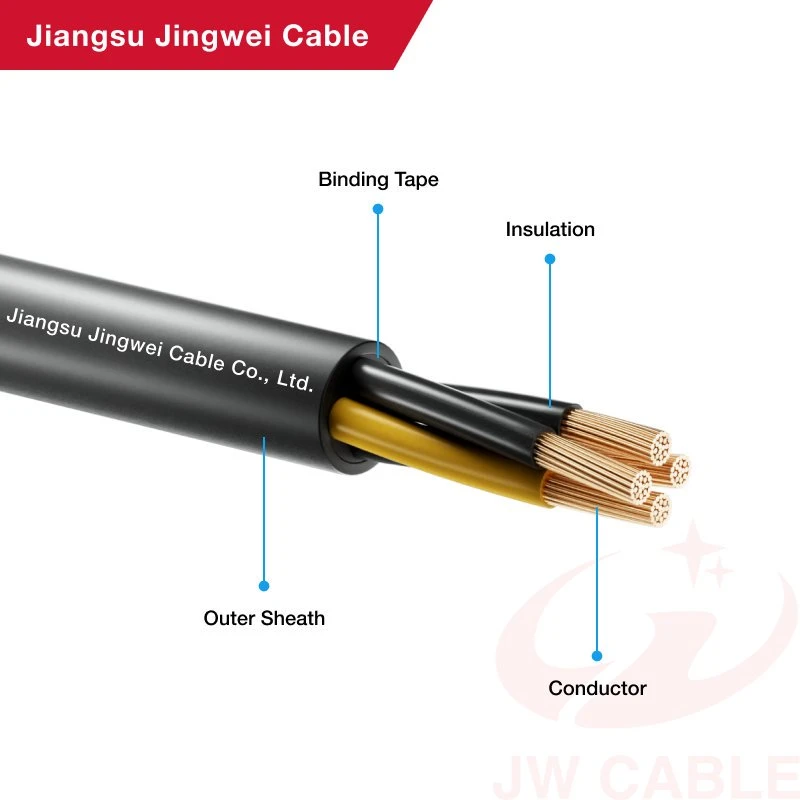

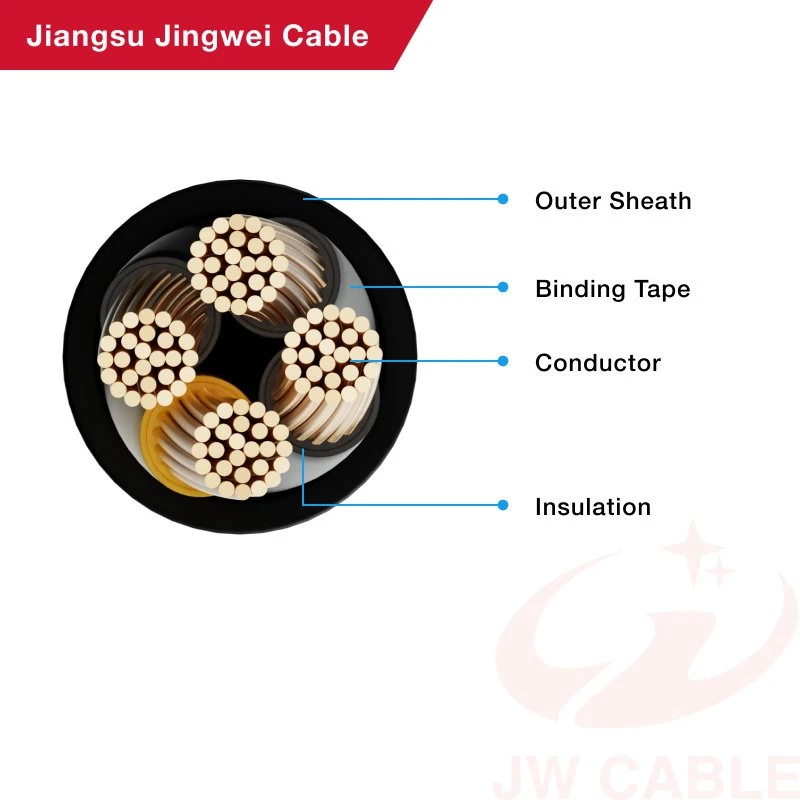

Triple Protection for Signal Integrity

The instrumentation cable has three protection layers. First, the twisted pair design reduces crosstalk between pairs. Second, the foil shield on each pair blocks interference between pairs. Third, the overall braid shield blocks external EMI. This triple protection makes the product perfect for precise measurements. The sheath uses UV-resistant and oil-resistant material for long-term outdoor and industrial use. We make it to IEC 60228 standards. The rated voltage is 300V. Every product passes 100% shield continuity and signal attenuation tests. More than 300 partners trust our product.

Technical Specifications

Parameter	Value
Standard	IEC 60228 / Enterprise standard
Rated Voltage	300V
Conductor Material	Tinned copper, Class 5 flexible
Pair Count	1 / 2 / 4 / 6 / 8 / 12 pairs
Pair Shielding	Aluminum foil tape (100% coverage) + tinned copper drain wire
Overall Shielding	Tinned copper braid (85% coverage)
Insulation Material	Electron-beam cross-linked polyolefin (XLPO)
Sheath Material	UV-resistant electron-beam XLPO
Operating Temperature	-40°C to +90°C
Cross Sections	0.5mm² / 0.75mm² / 1.0mm² / 1.5mm²

Applications and Wiring Tips

The instrumentation cable is used for precision measurements in many systems. In solar environmental monitoring, it carries signals from irradiance sensors, wind speed sensors, and temperature sensors. In combiner box smart monitoring, the product transmits analog signals from current and voltage sensors. In BMS systems, it connects battery temperature sensors and voltage detection lines. The product also fits industrial transmitters and actuators. For analog signals, keep the length under 300 meters. For digital signals, longer distances are possible. The pair shield drain wire should be grounded at the receiving end. The overall shield should be grounded at one end only. We offer custom pair count, cutting, printing, colors, and shielding options. We hold ISO 9001, ISO 14001, and ISO 45001. The lead time is 15 days after deposit.
